JJ BROCH Garlic Peeling Line.

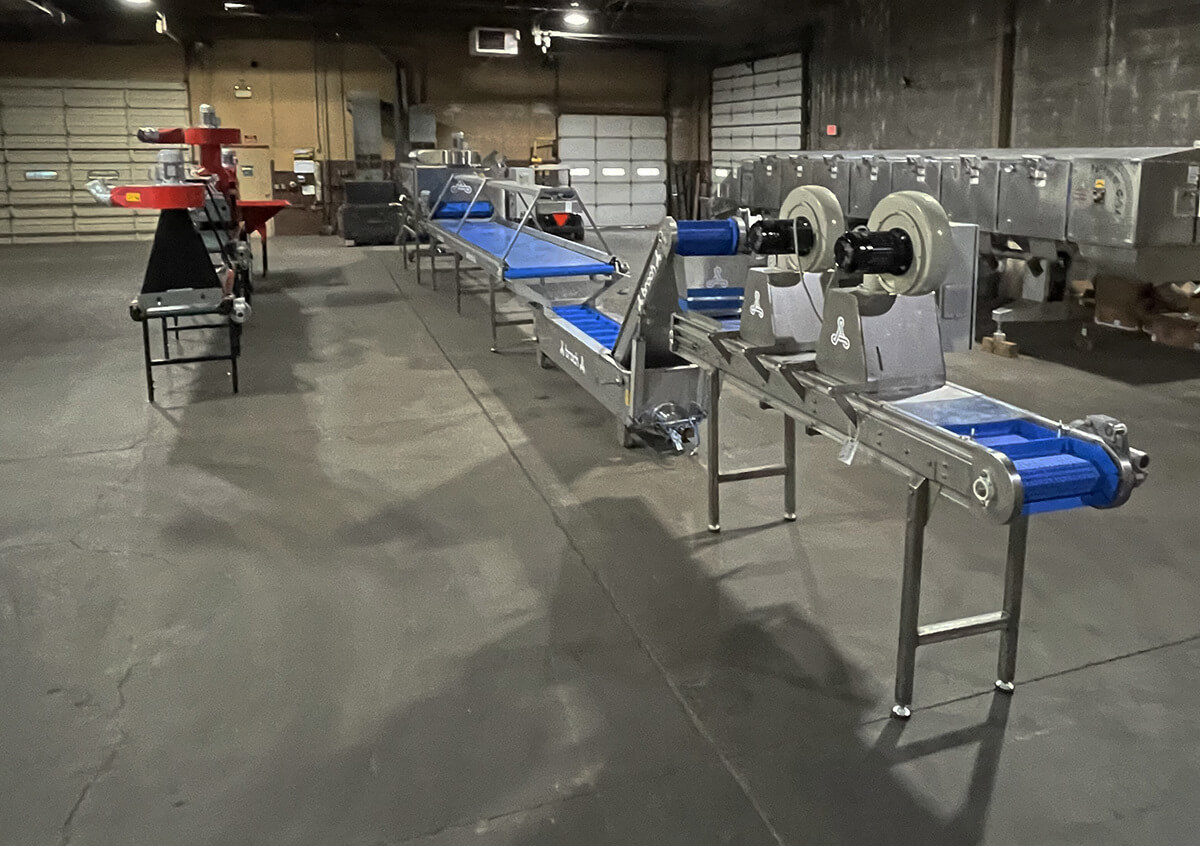

JJ BROCH (Spain) garlic peeling line with feeder, splitter, inspection conveyors, and peeler collecting boxes for 1,000 pounds-per-hour output.
FEATURES:

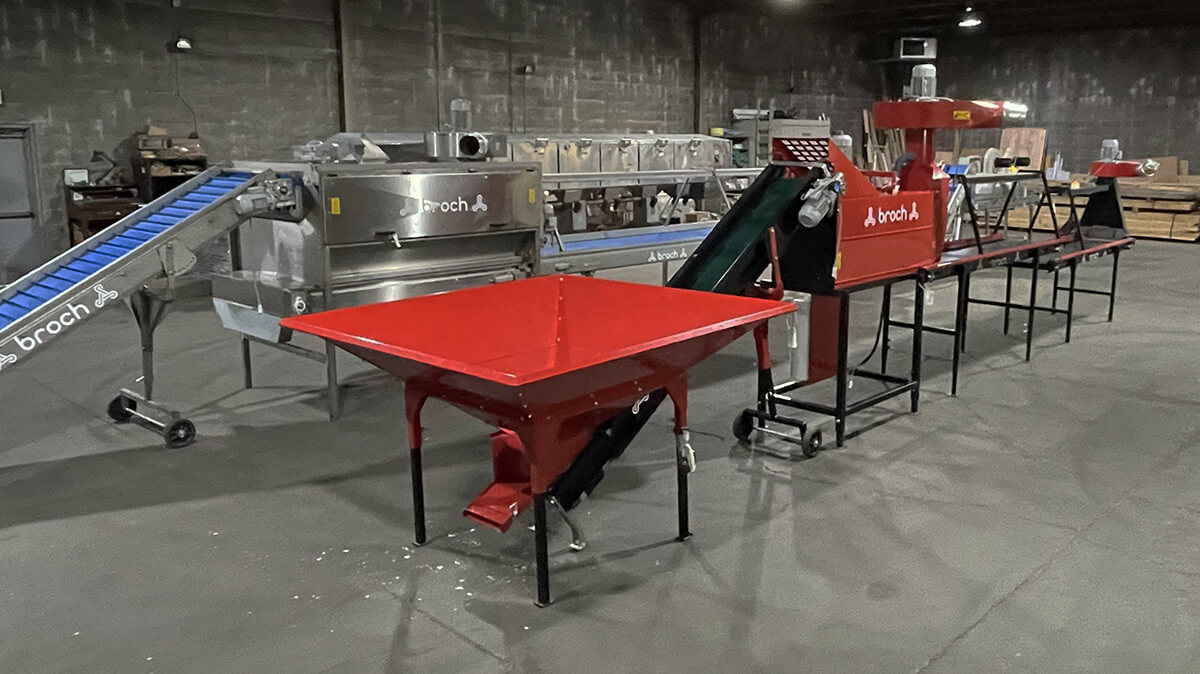

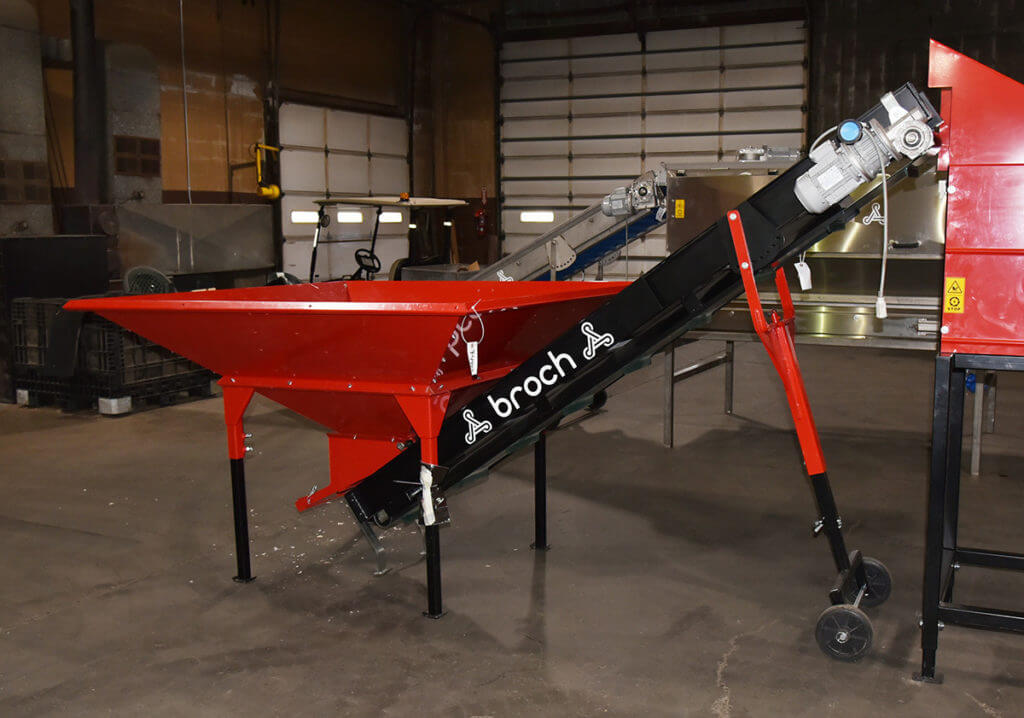

INFEED HOPPER:
70-inch-by-70-inch-by-26-inch.
Hopper tapers to 11.5-inch square center bottom exit with discharge chute.
50″ high infeed.
Height-adjustable legs.
Painted steel.

Elevating Belt Conveyor:
Bottom fits INFEED HOPPER discharge chute.
12″ wide by 105″ long black rubber belt with 1″ high cleats on 12″ centers.
High-discharge 70-inch feet.
Mild steel painted.

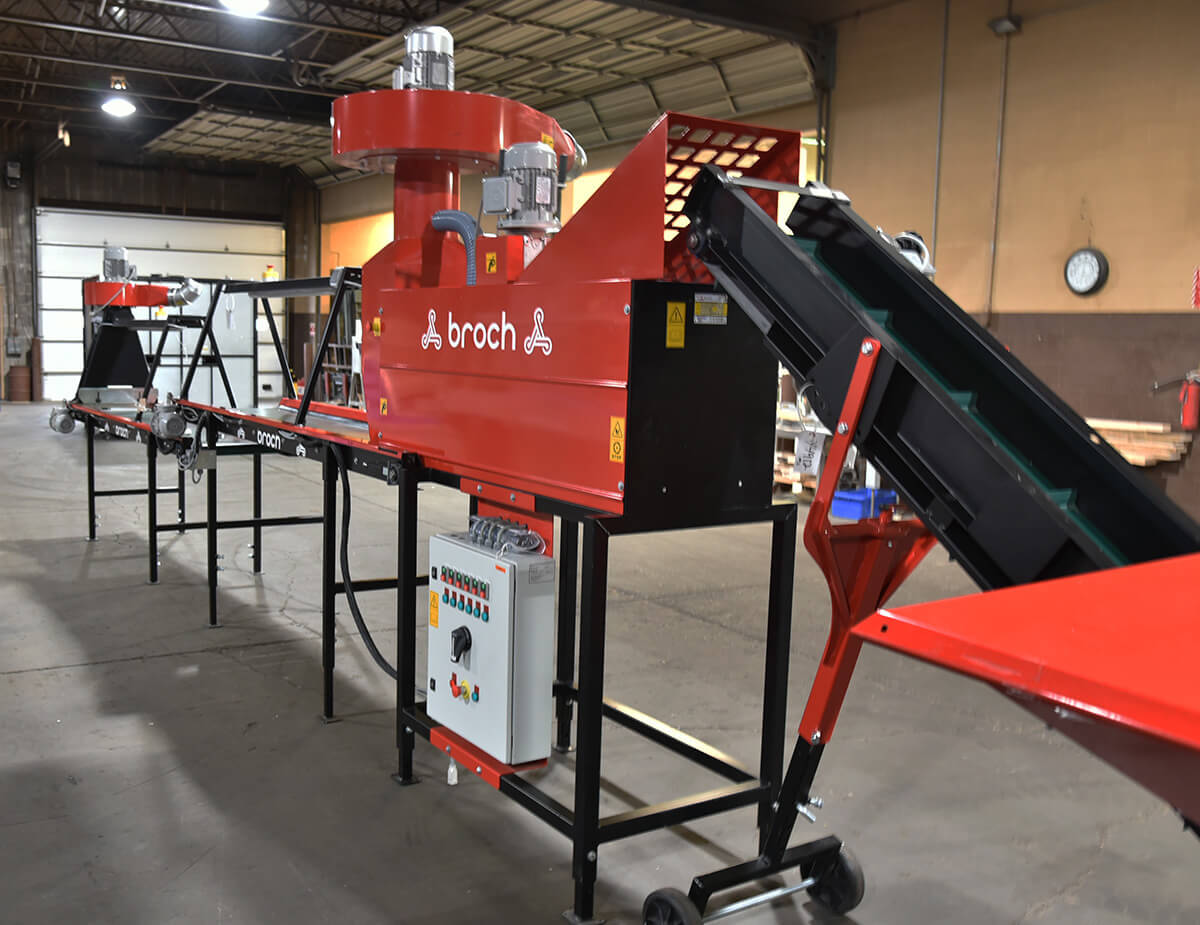

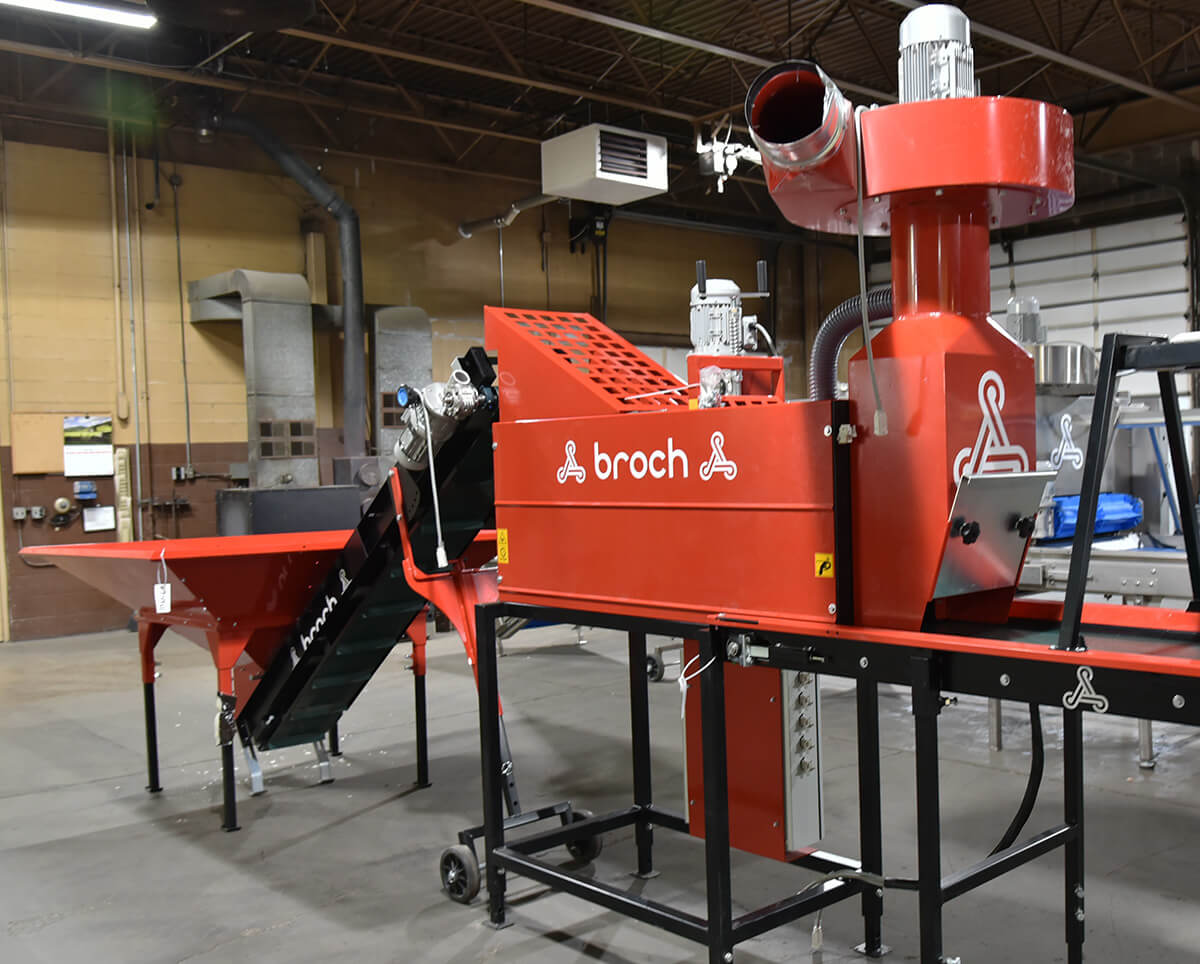

GARLIC CRACKER/SPLITTER:
Whole garlic is top-fed into brushes and a twin belt cracking mechanism.
Top-mounted chaff blower.
43-inch-high cracked/split cloves are released.
Operator control panel.
Mild steel painted.

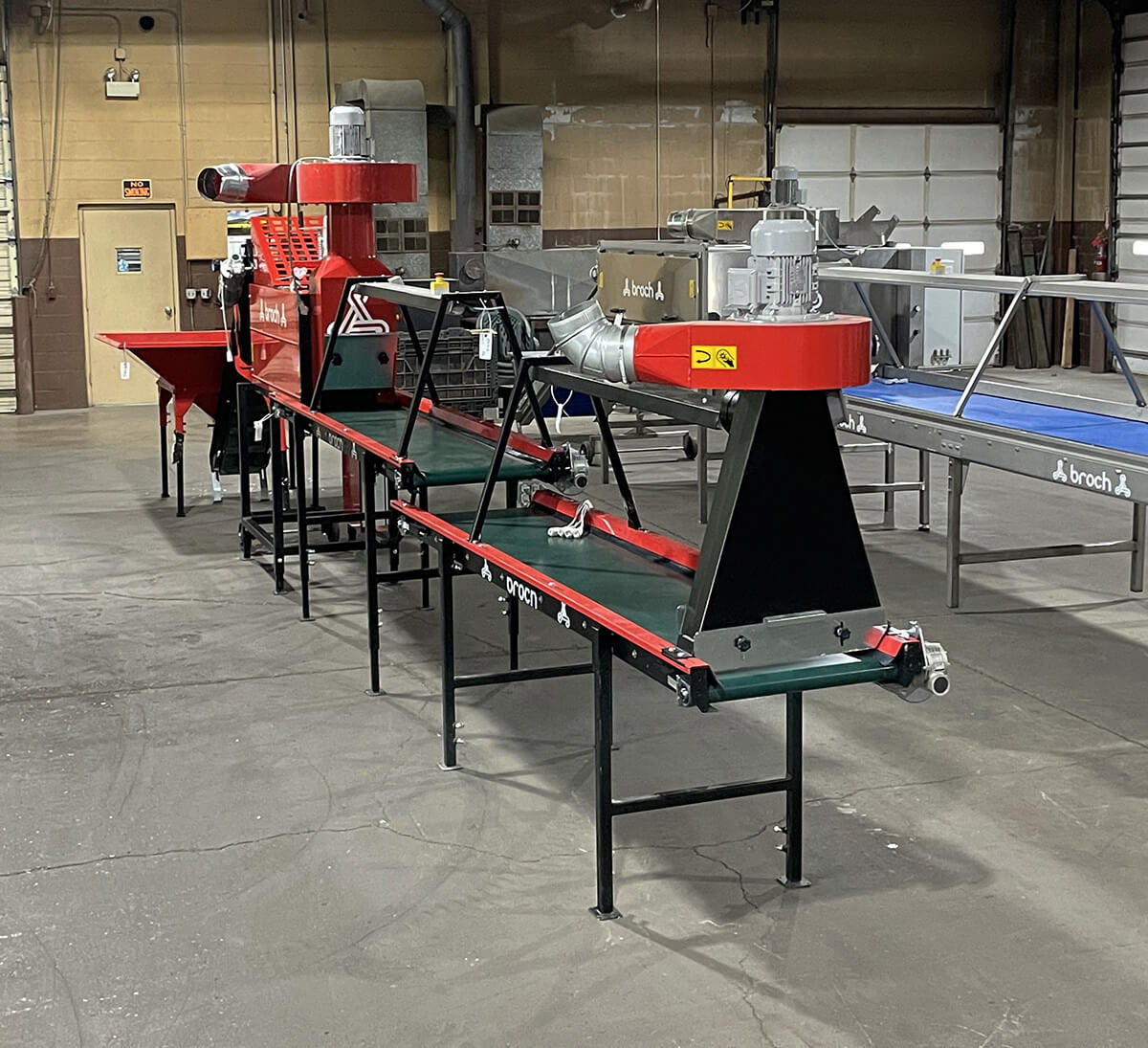

SORTING/MANUAL CRACKING CONVEYOR:
22-inch-wide, 112-inch-long black rubber belt.
Center/overhead light.
42″ working height.
Mild steel painted.

SORTING/MANUAL CRACKING CONVEYOR:
22-inch-wide, 112-inch-long black rubber belt.
Center/overhead light.
Adjustable louver blower hood vacuums garlic skins exclusively.
36″ working height.
Mild steel painted.

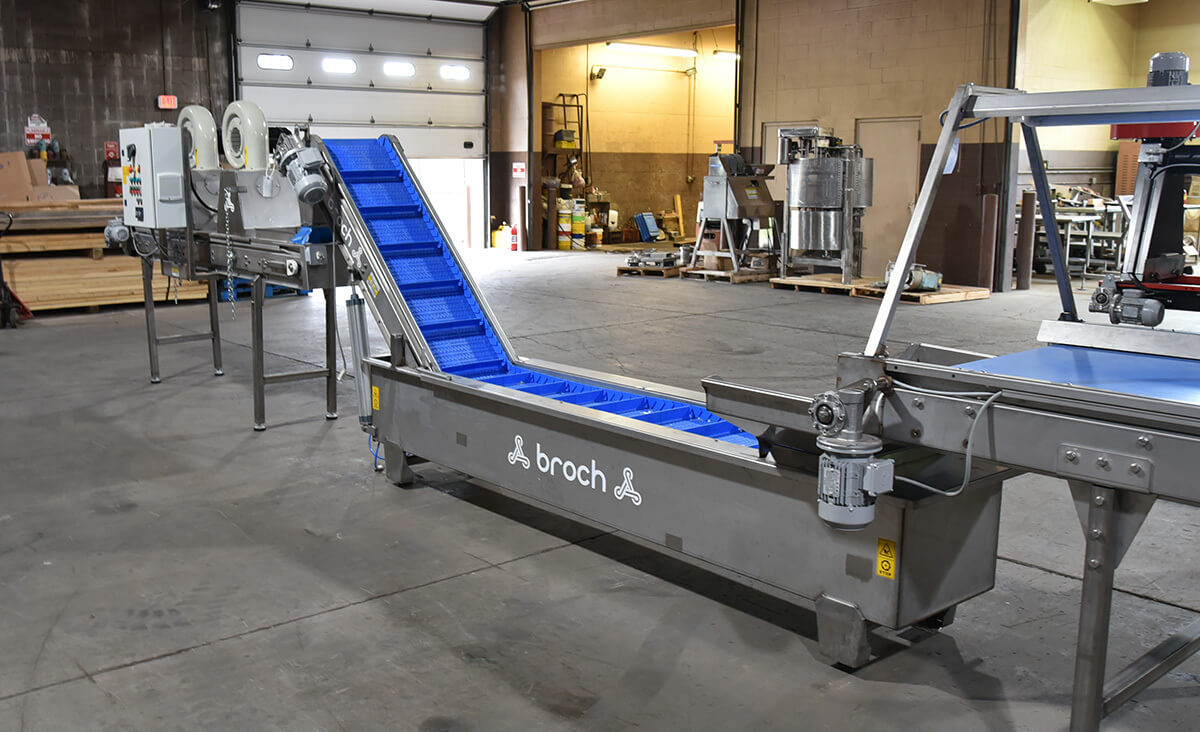

SORTING CONVEYOR:
Cloves drop into 31-inch-wide, 40-inch-long hopper.
31-inch-wide, 120-inch-long rubber belt with 1.5-inch-high cleats on 4-inch centers.
100% food-grade stainless steel.
Discharges into PEELER…

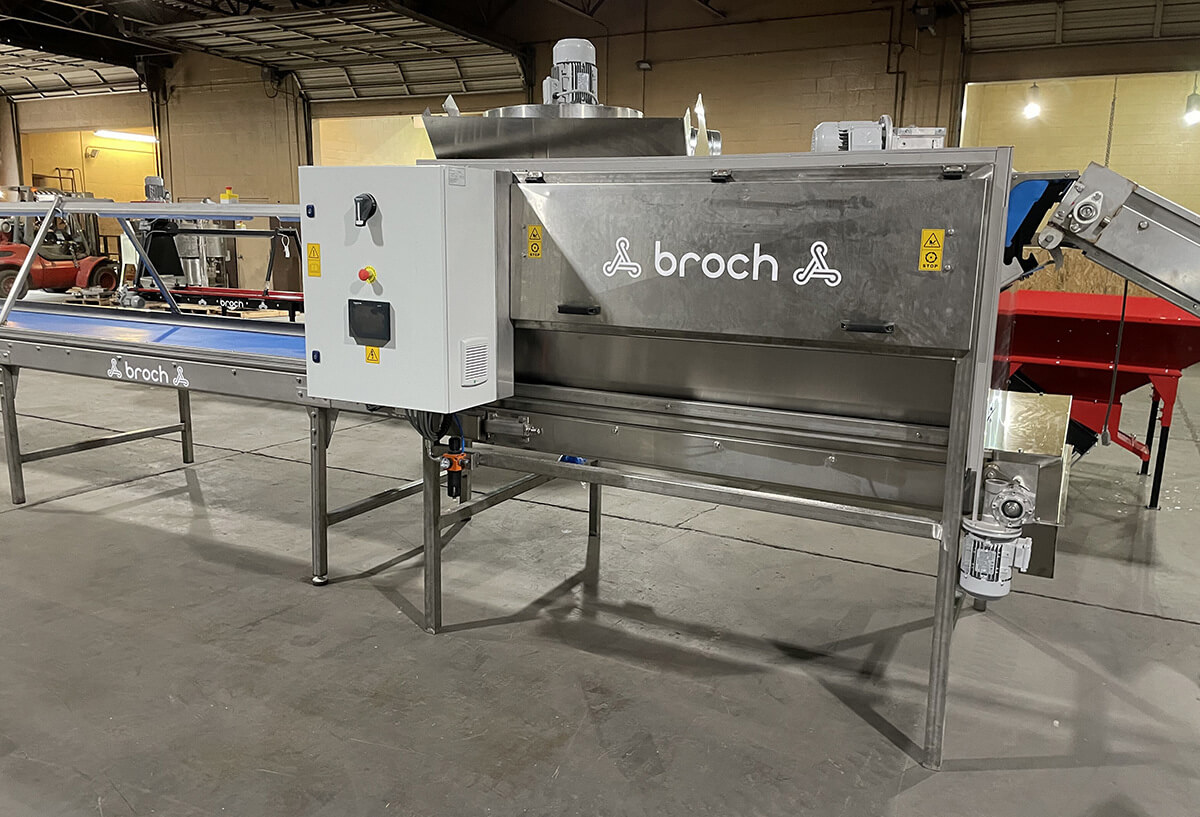

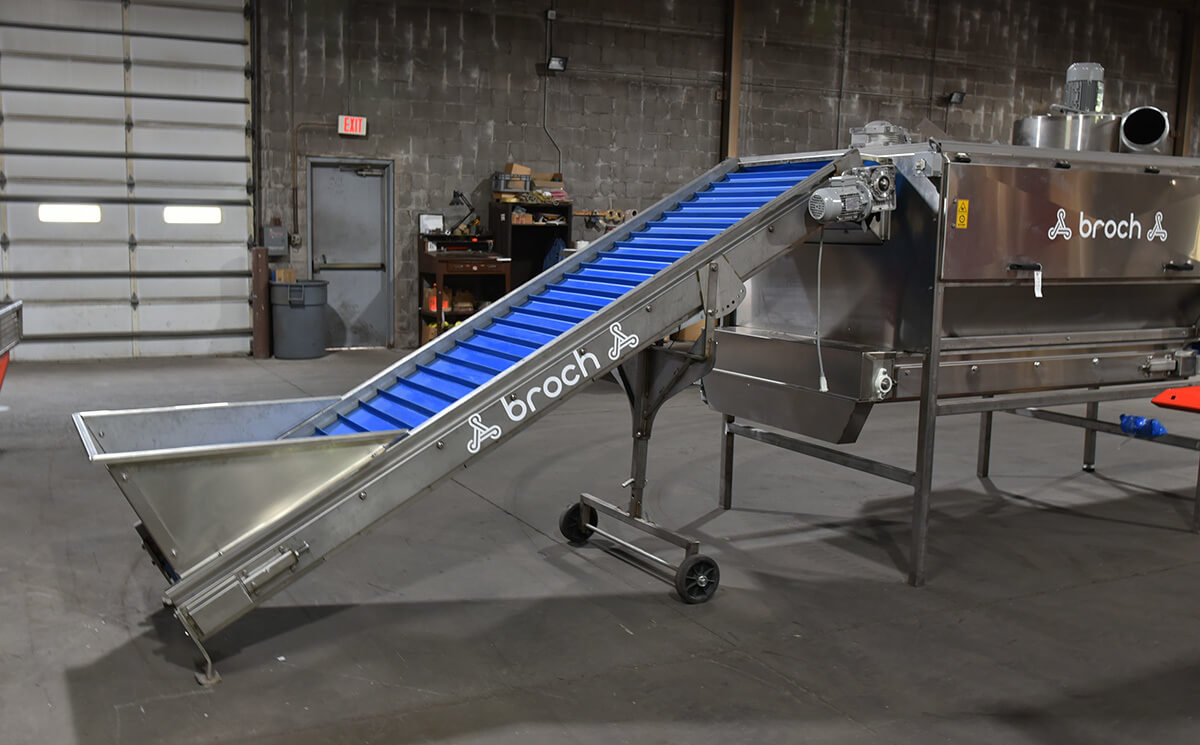

Garlic peeler:
Split cloves fall onto a 33-inch rubber belt with 1.5-inch cleats on 4-inch centers within the chamber.
A moving head blasts high-pressure air into belt pockets immediately above the cleats.
The peeler’s top-mounted fan cleans belt pockets.
The peeler’s infeed end receives trash from a 46-inch rubber belt under the main belt.

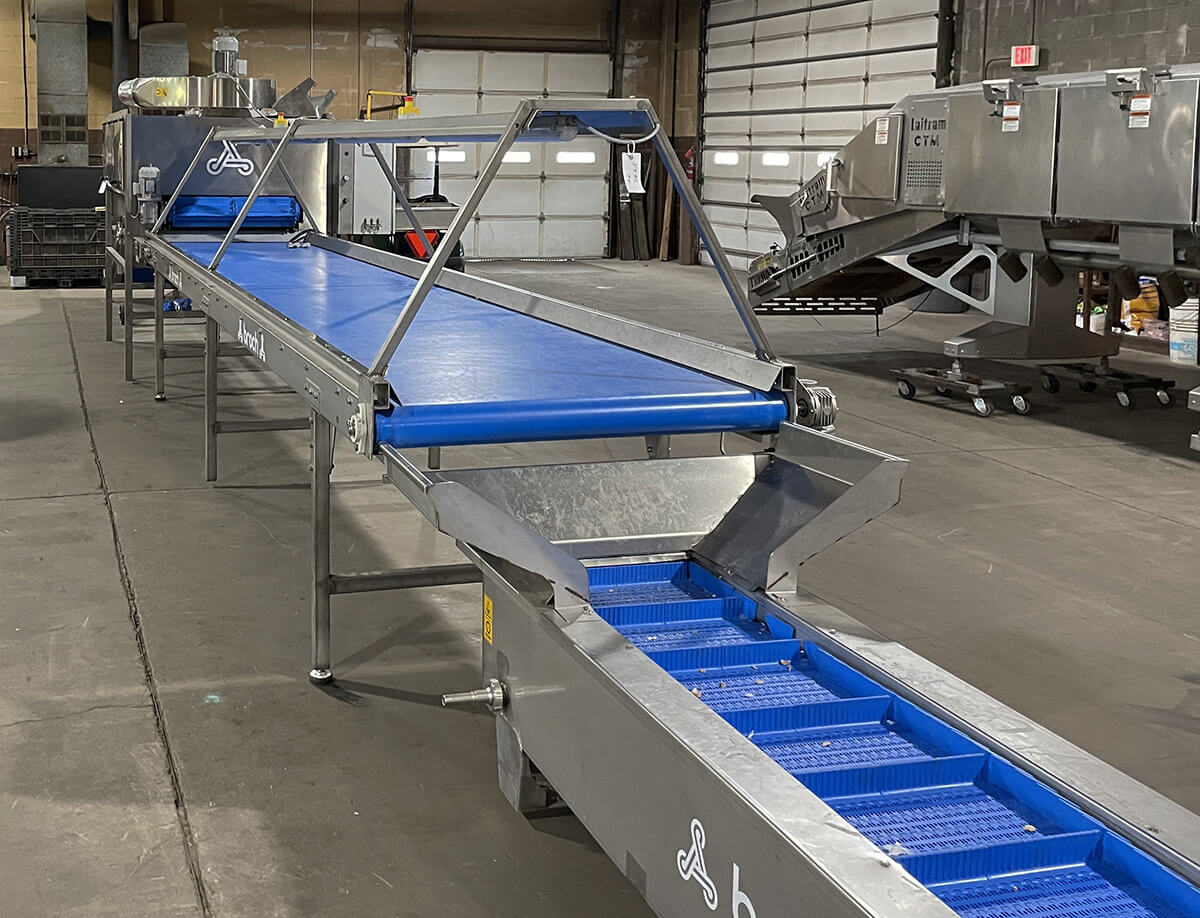

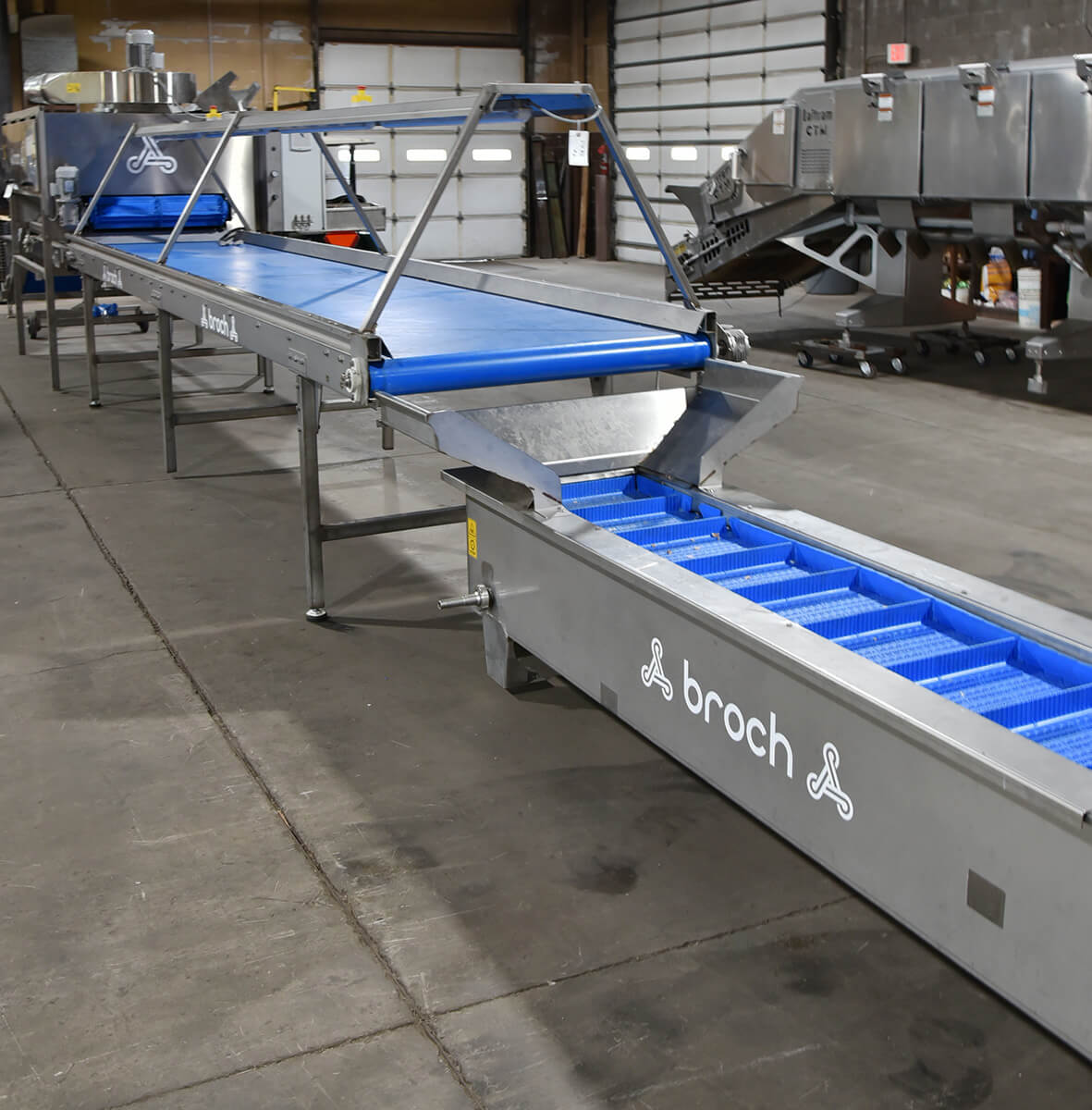

Final check CONVEYOR:
40-inch-wide, 19-foot-long flat rubber belt with 3.5-inch-high tapering edges.
Top-center lighting.
36″ working height.
100% food-grade stainless steel.

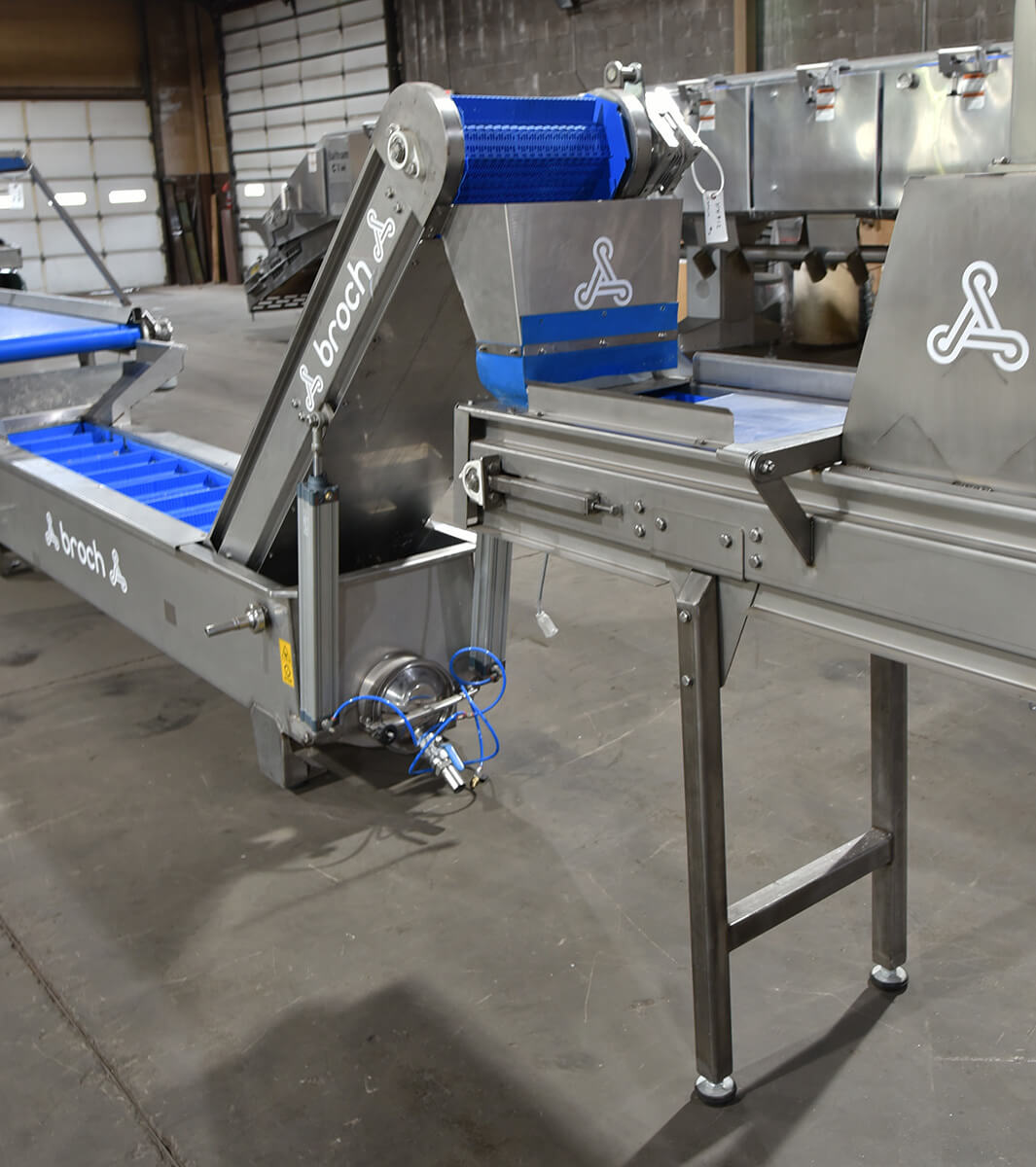

WASH TANK/BATH:
A 42-inch-by-20-inch tapered hopper feeds a 16-inch-wide perforated plastic belt with 2-inch-high cleats on 12-inch centers.
Belt moves 90 inches horizontally across liquid, then inclines 60 inches to drain.
44-inch chutes release cloves.
Pneumatic cylinders elevate conveyor for cleaning and maintenance.
100% food-grade stainless steel.

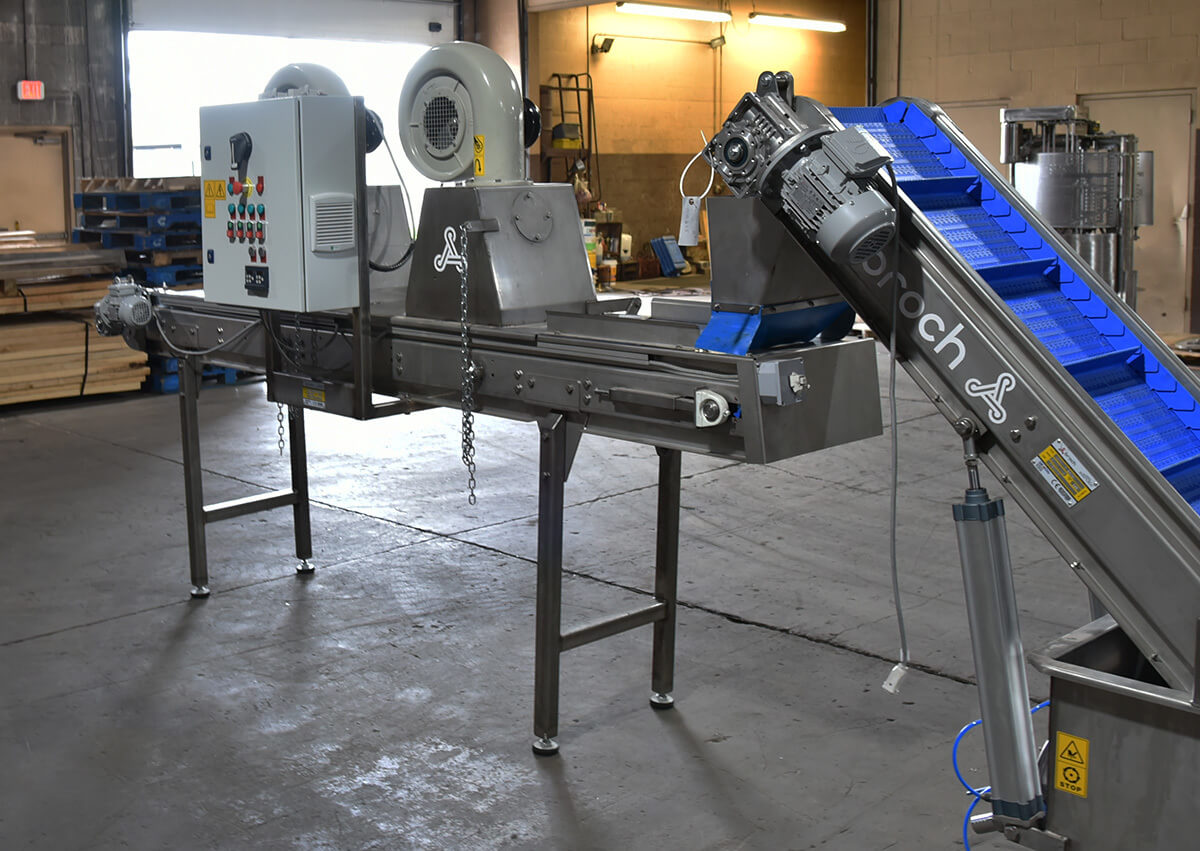

DRYER:
16-inch-wide, 108-inch-long perforated plastic belt with 2-inch-high cleats on 10-inch centers.
Dual overhead clove dryers.

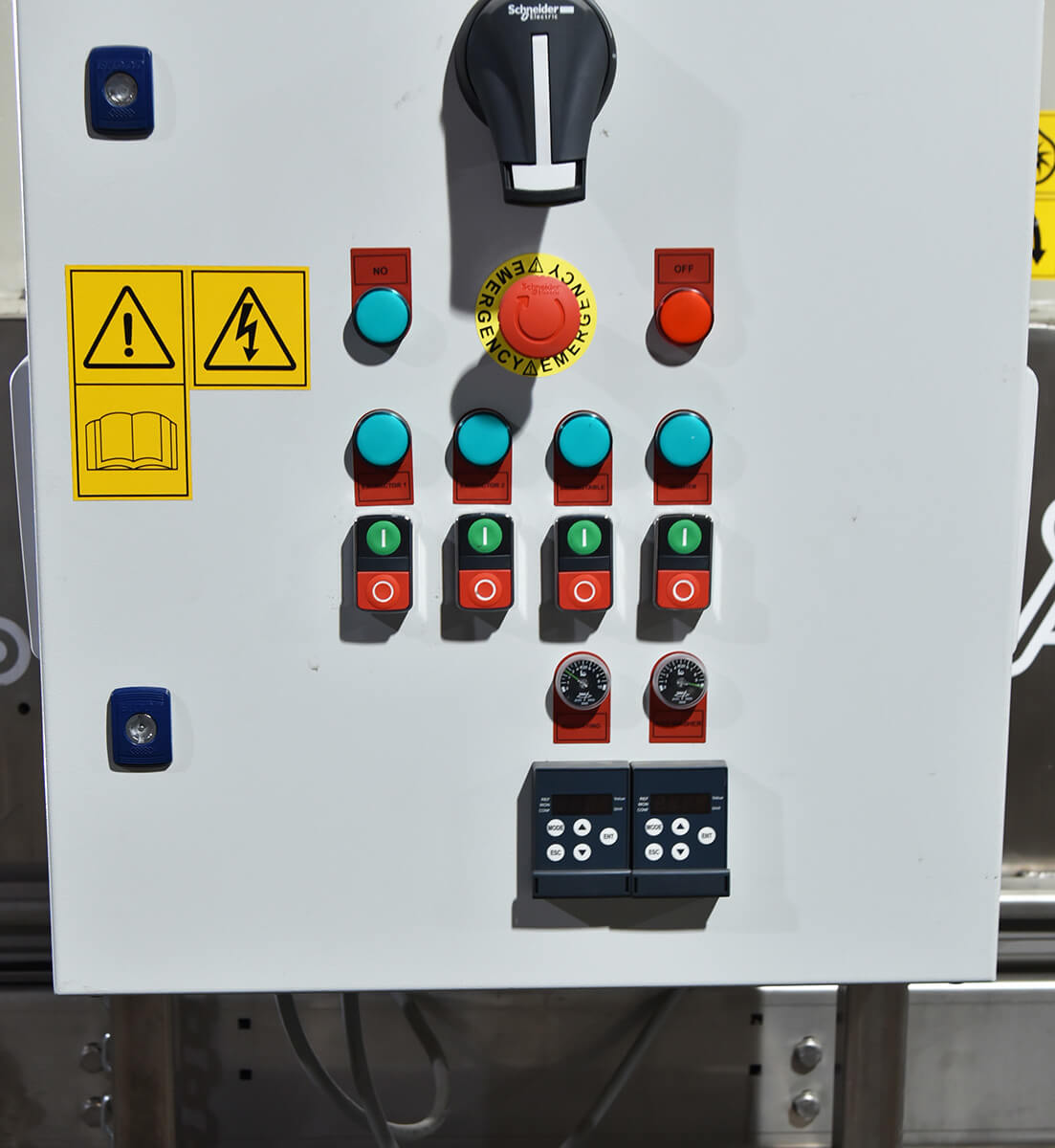

All “PEEL LINE COMPONENTS” speed control panel.
37-inch garlic discharges.

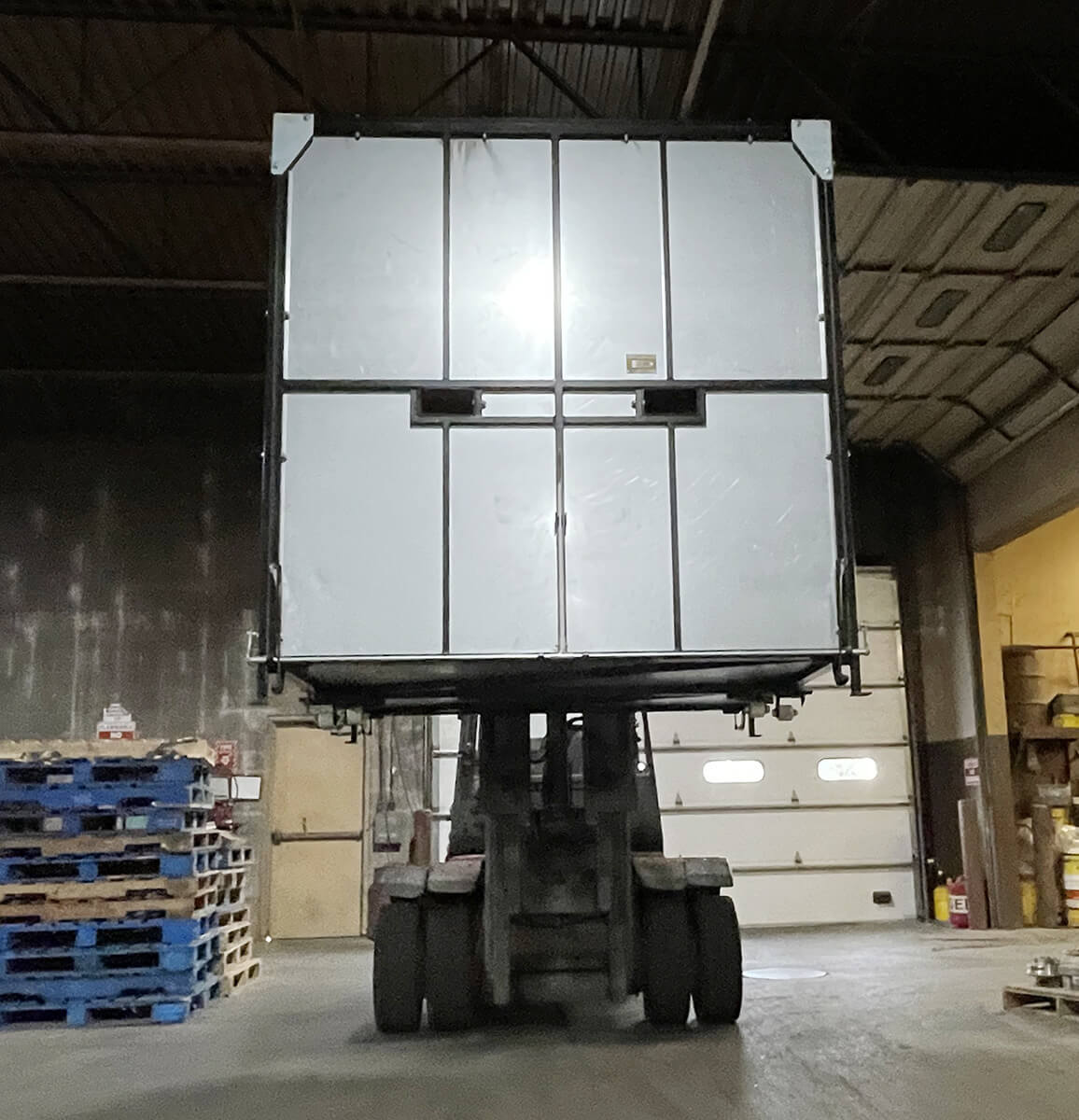

(2) Waste containers
One receives skins/debris from CRACKING Portion, the other from PEELING Portion.
81″ long, 81″ broad, 85″ high.
Forklift-liftable and dumpster-mounted.
Manually open hinged bottom panels to empty bin/container.

110V single-phase and 460V/3PH
