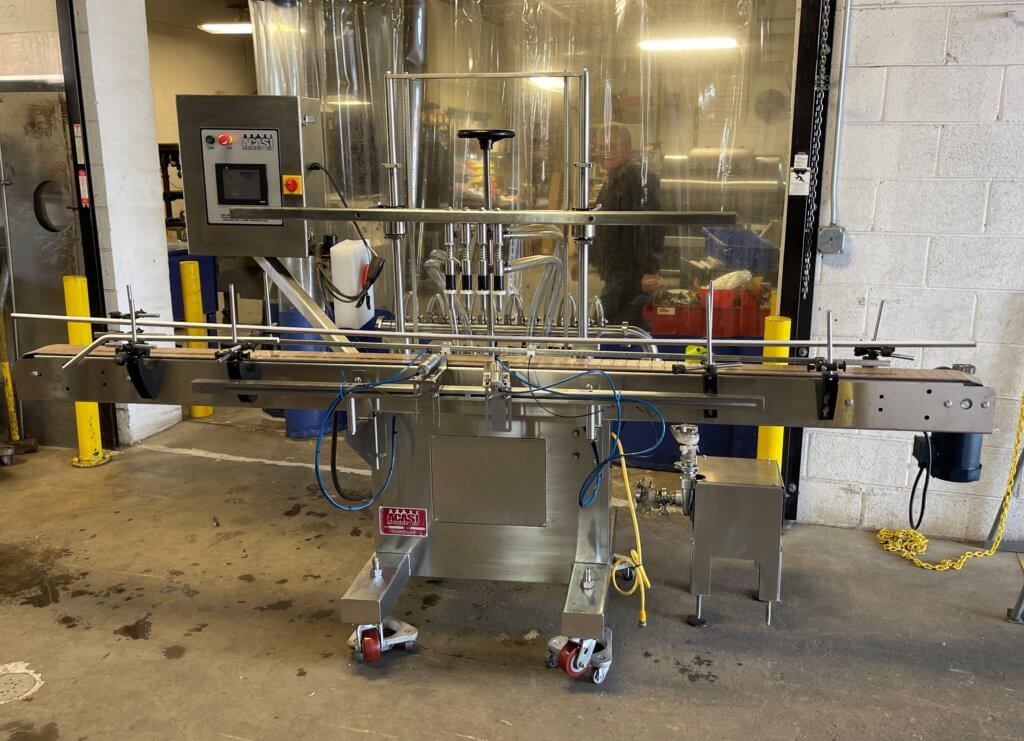

Acasi GI 3300 Pressure Overflow Bottle Filler

Acasi GI 3300 Pressure Overflow Bottle Filler

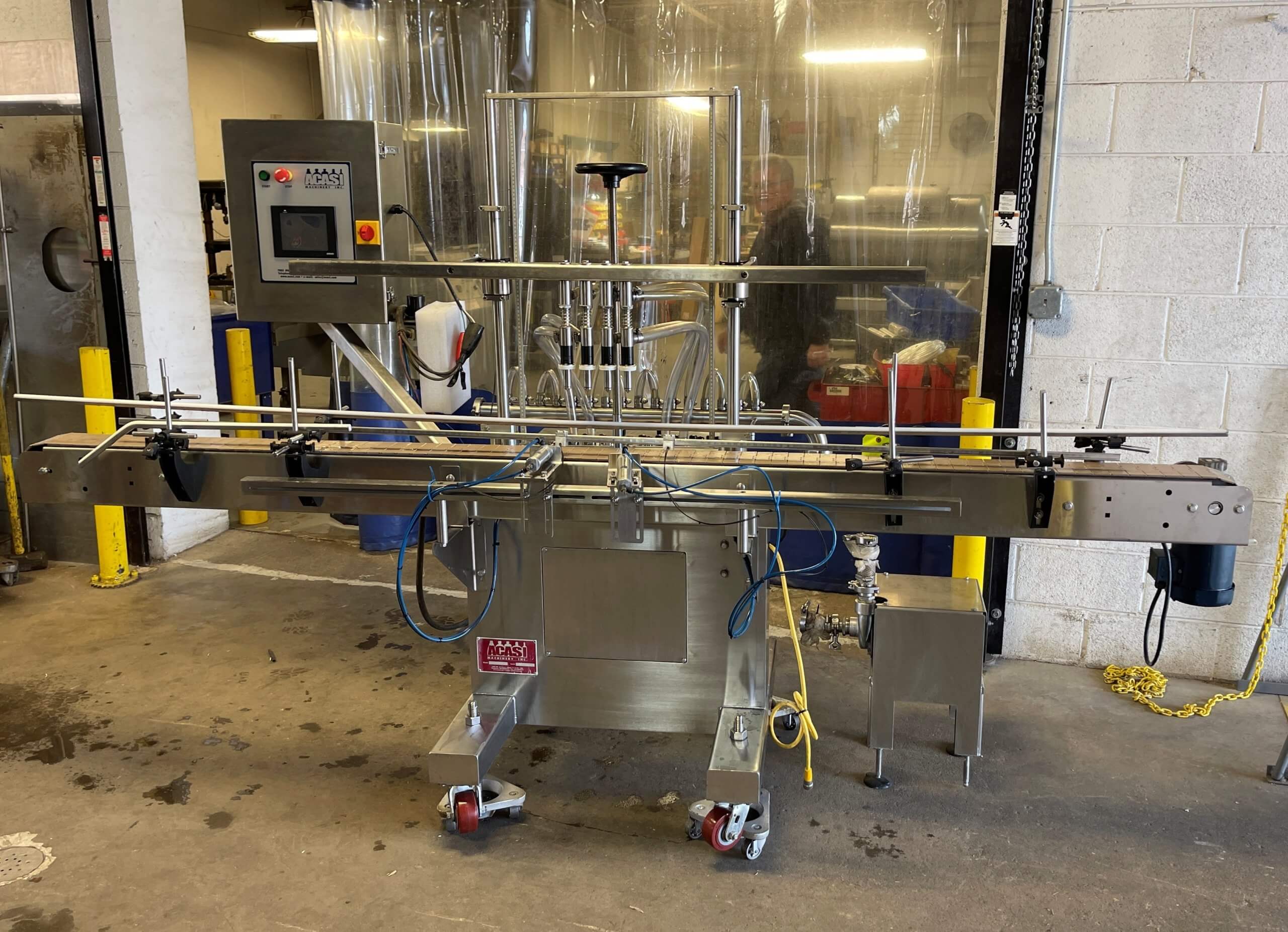

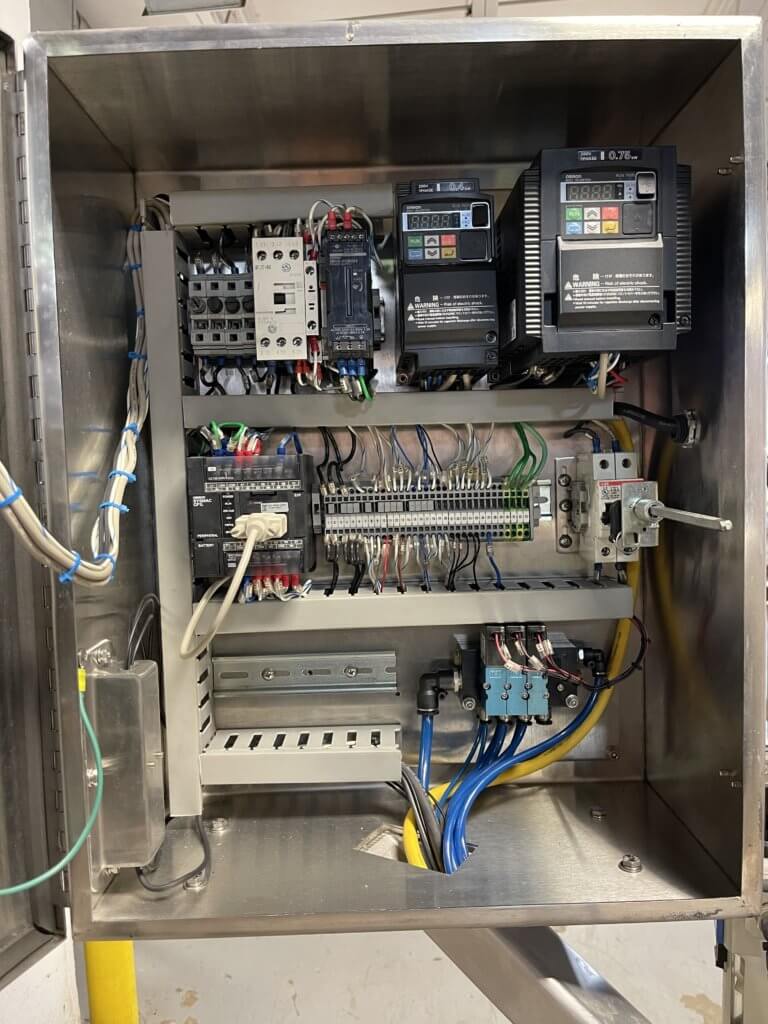

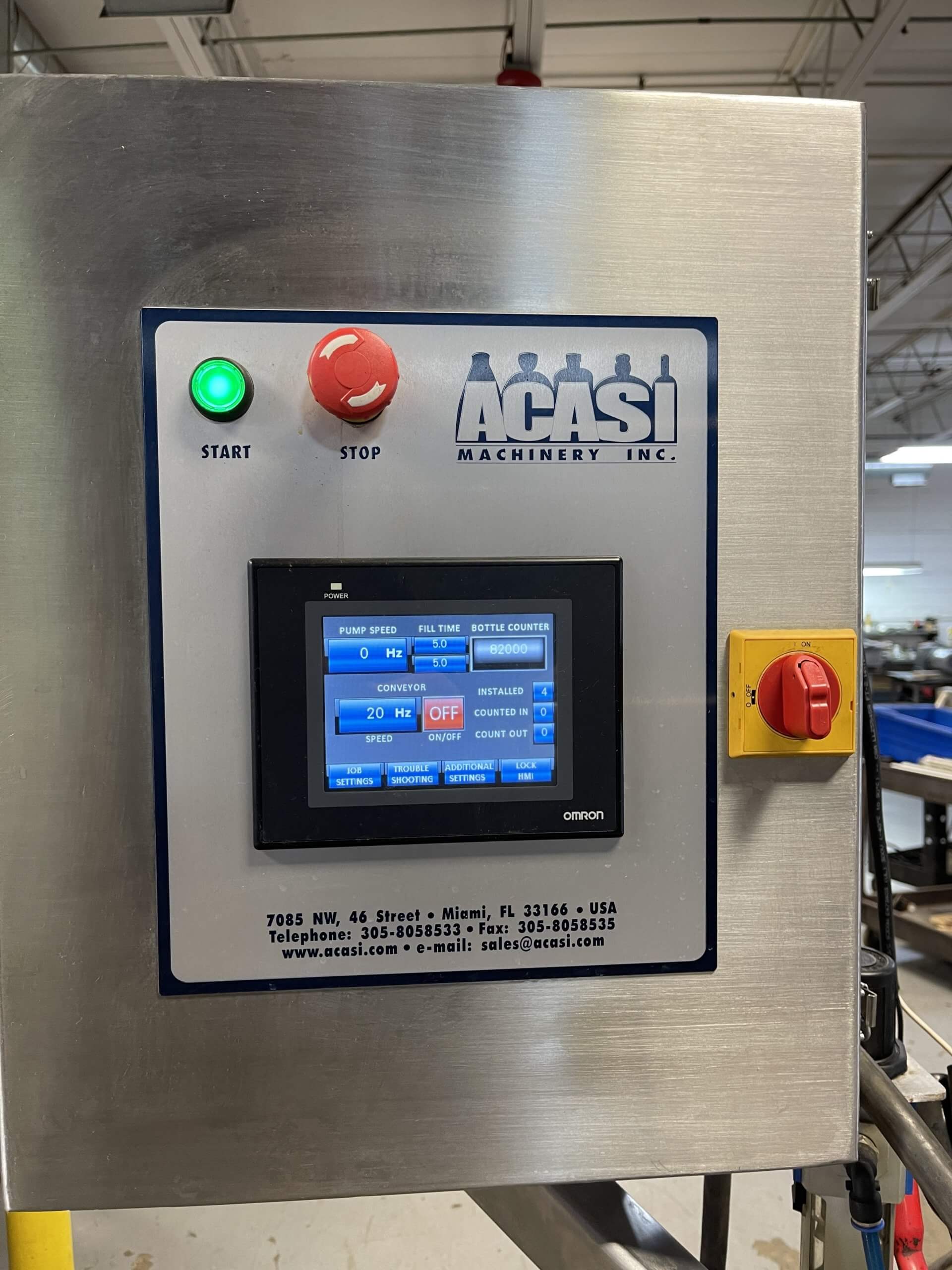

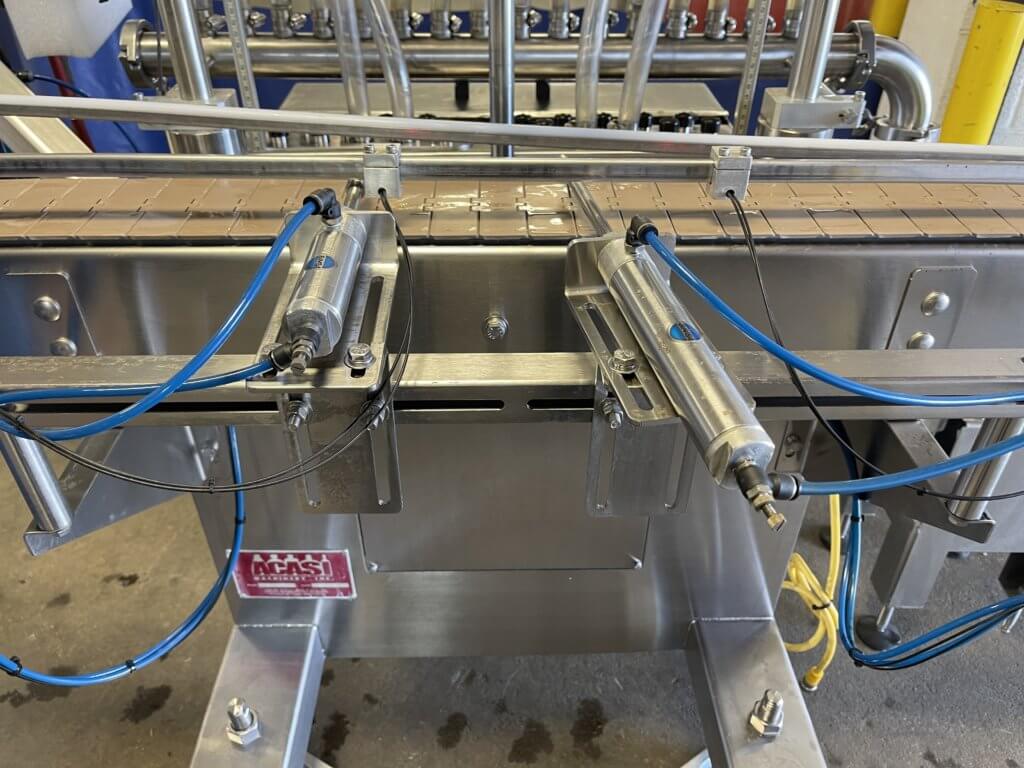

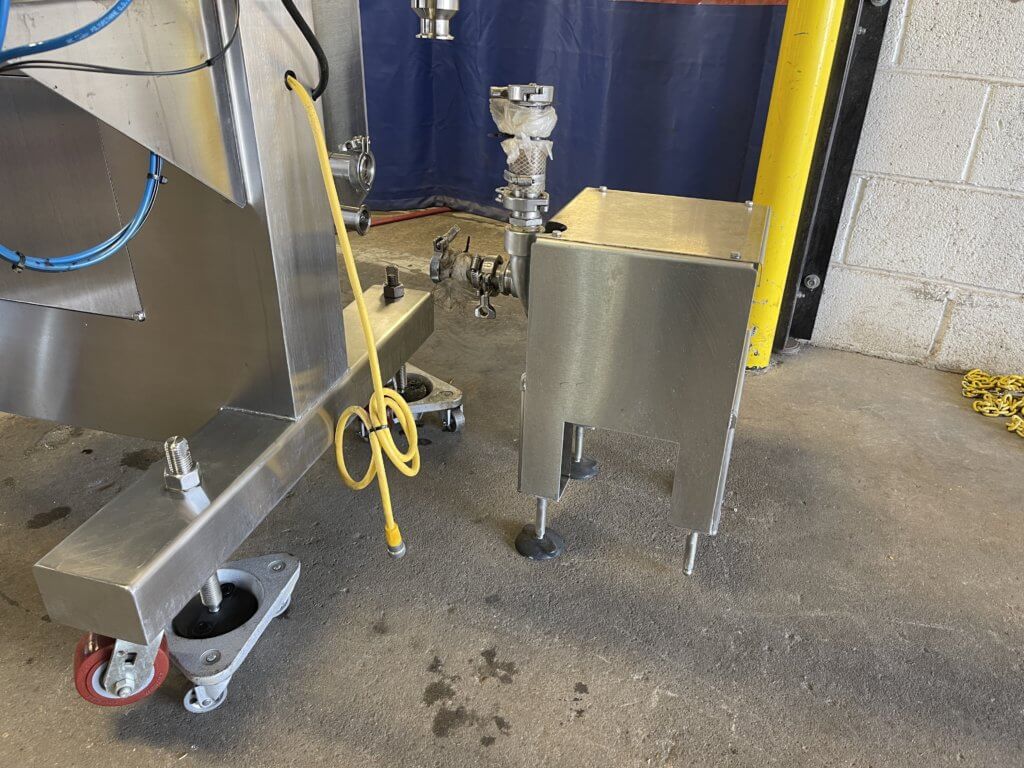

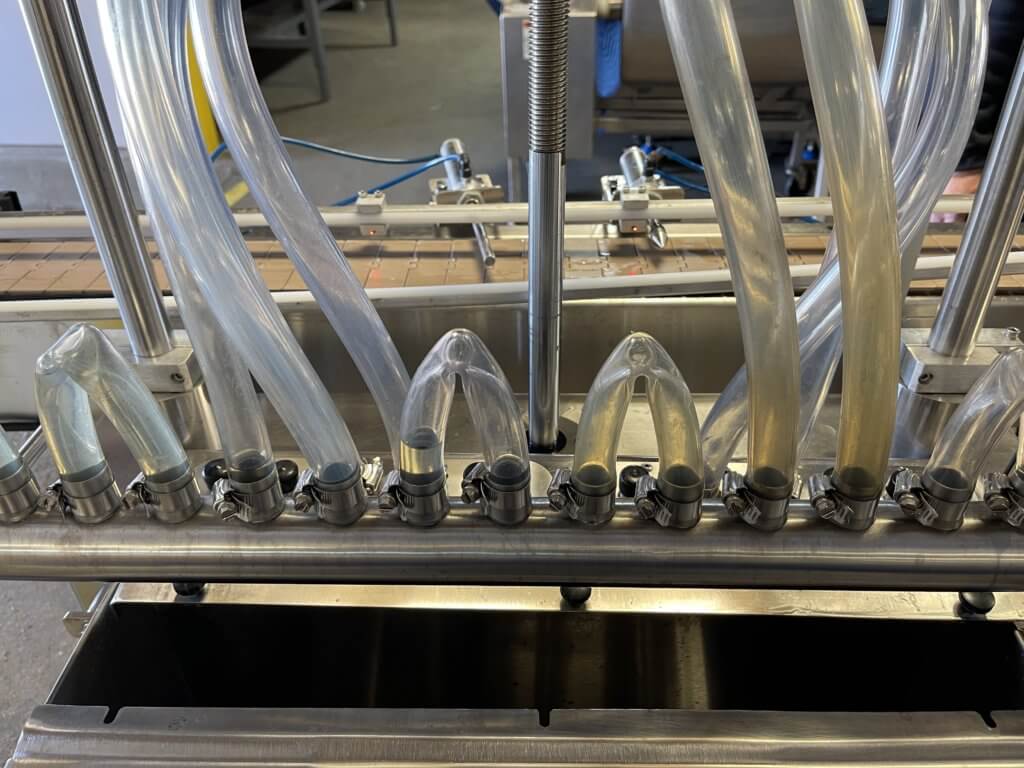

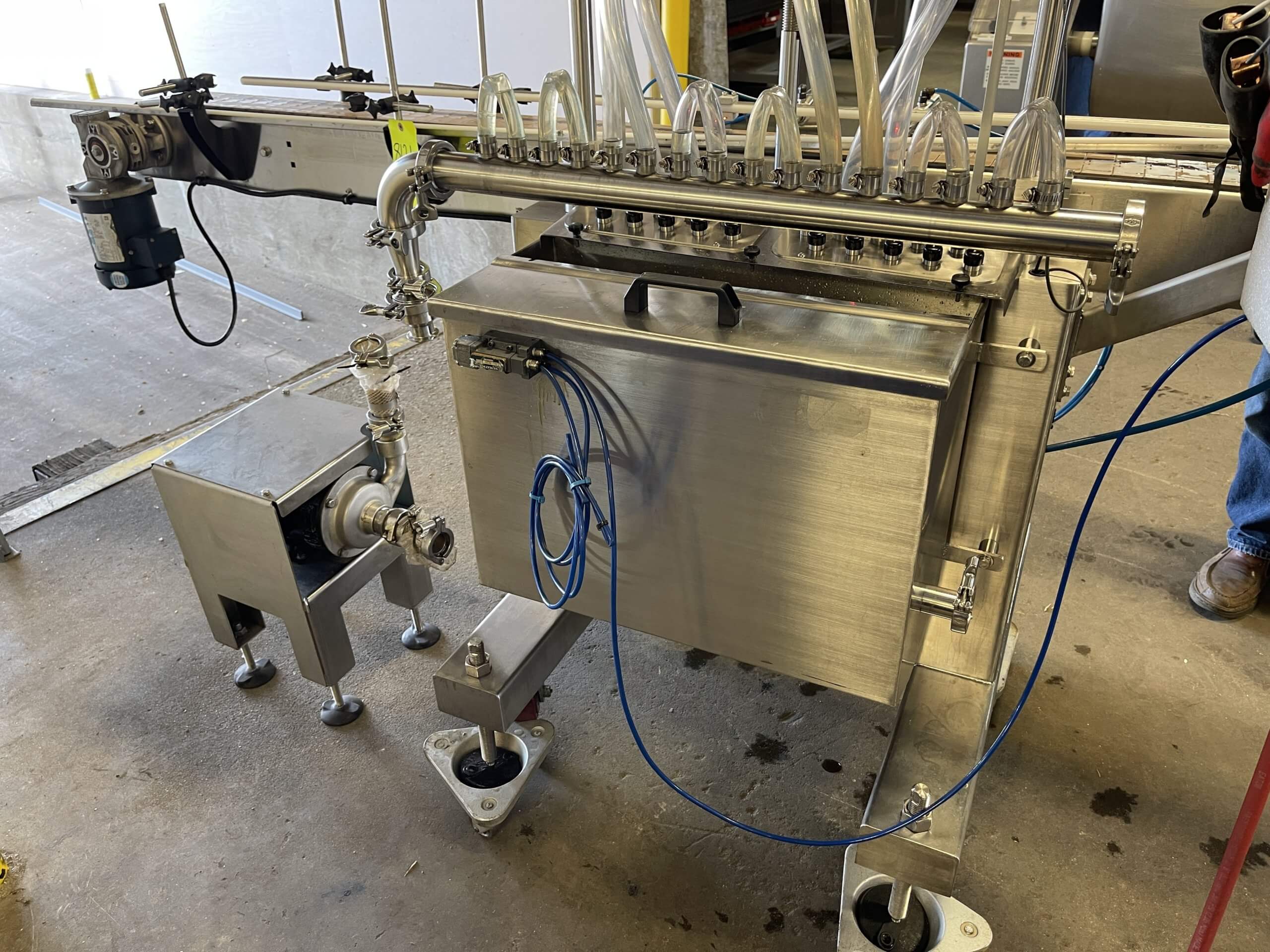

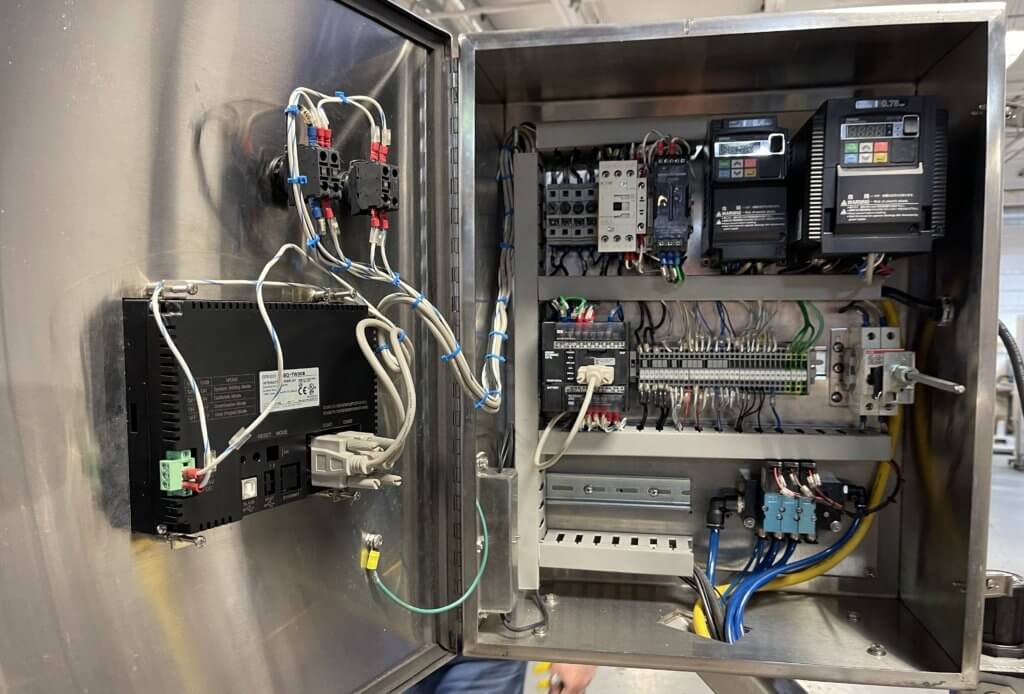

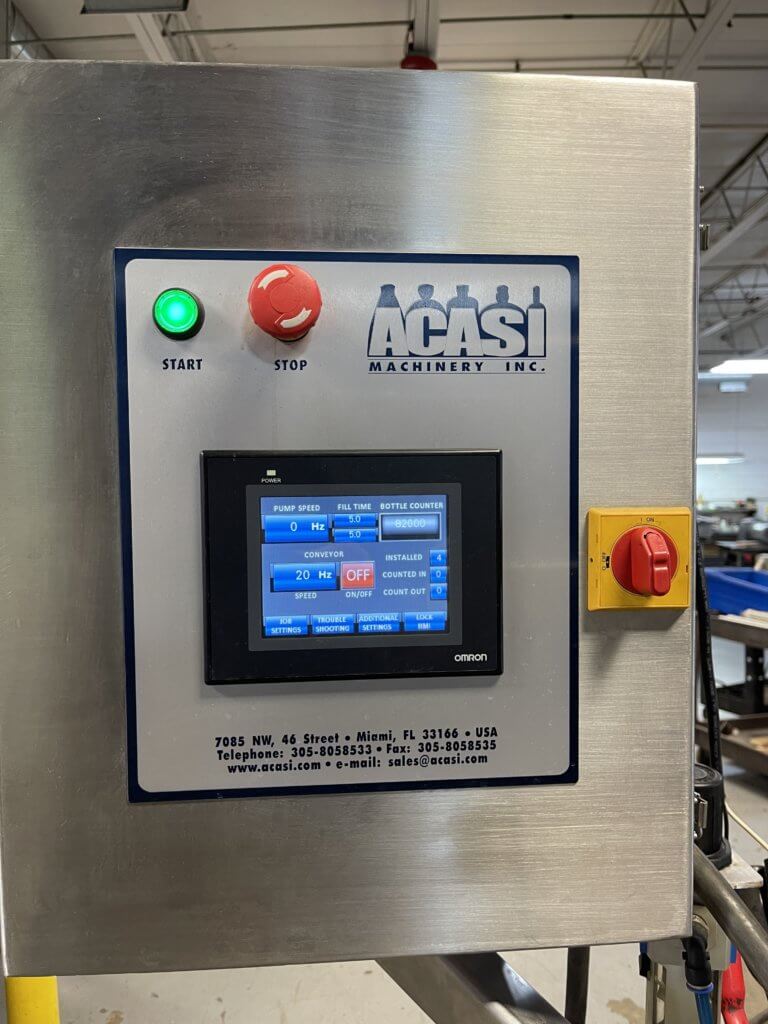

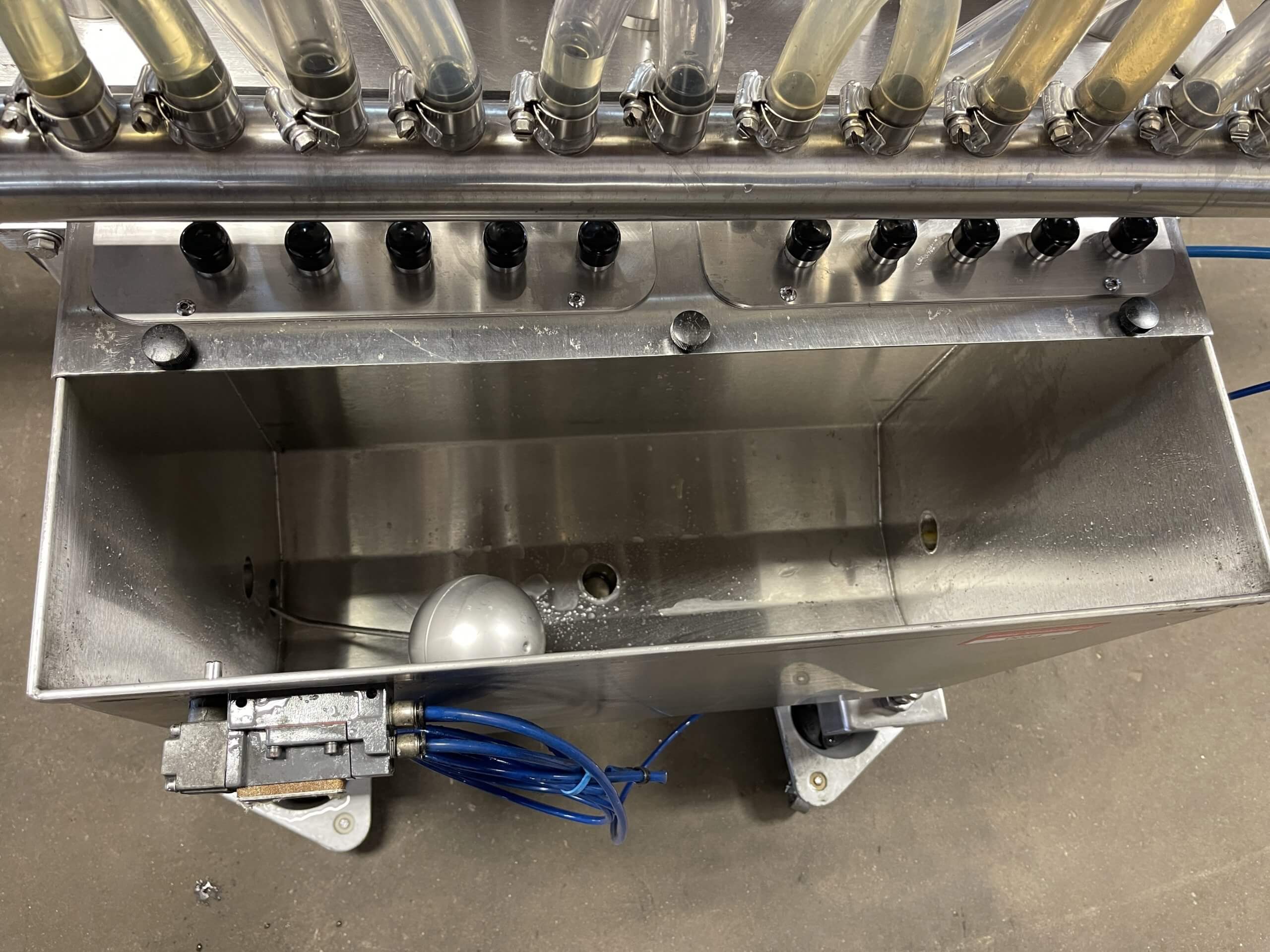

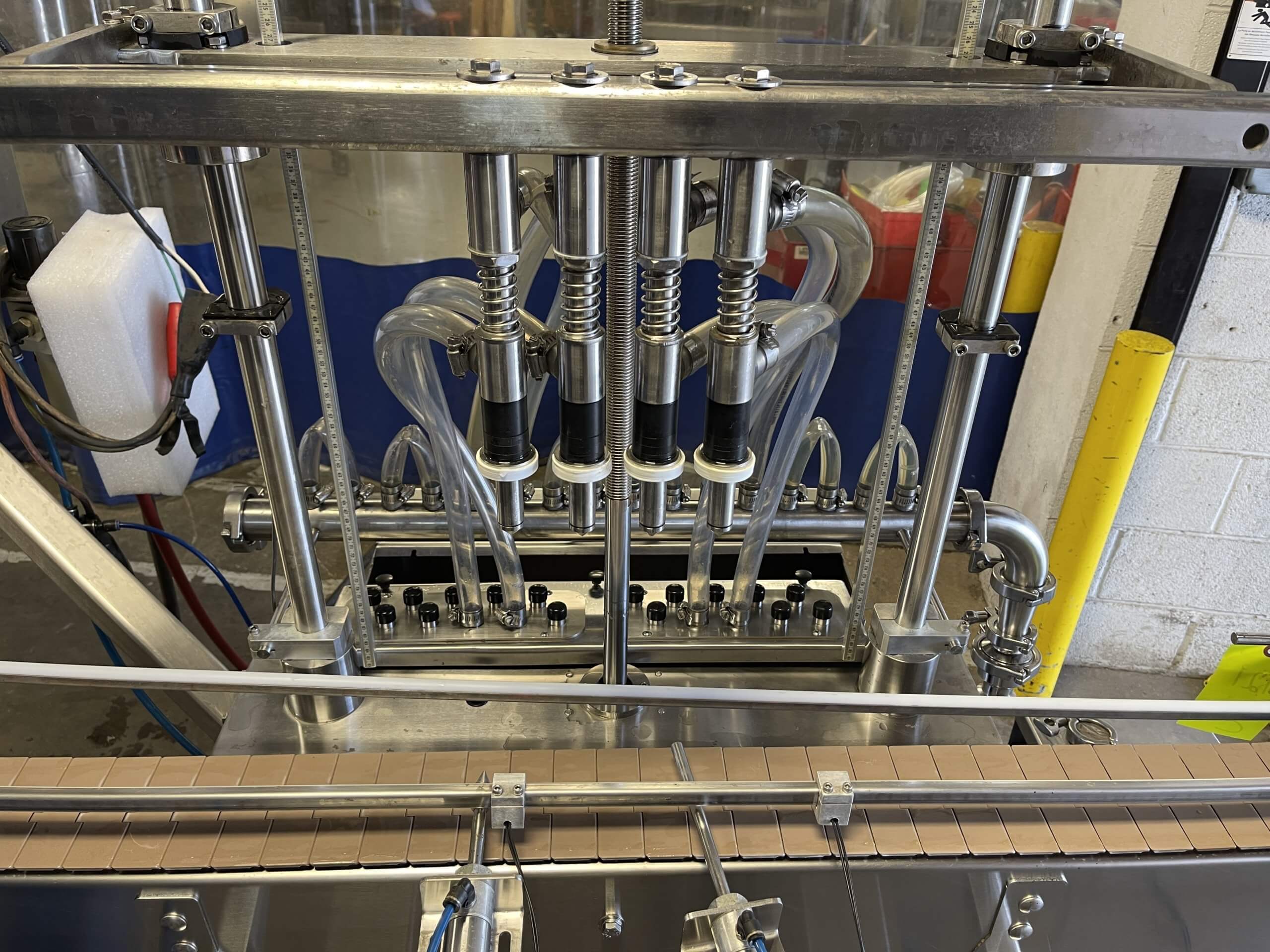

Acasi GI 3300 Pressure Overflow Bottle Filler. Set up as a 4-head machine with PLC-controlled pneumatic drip tray, 10′ conveyor (4.5 in. wide acetal chain) with speed control. 304 Stainless steel heavy duty stainless steel welded C frame. 20 Gallon stainless steel overflow tank, stainless steel feeding manifold.Calibrated guide for fast height changeovers. Filling machine mounted on 4 heavy duty casters. Omron PLC logic functions, Frequency control drive for pump speed, acceleration and deceleration.Front panel bottle filling time adjustment through Omron Timer. Front panel mounted bottle counter. Fiber optic sensors for container gating. No bottle no fill PLC controlled.96 Gallon per minute, 316 stainless steel centrifugal pump.10 inch stroke air cylinder with magnetic sensors for nozzle up and down movement. 316L Stainless steel sanitary check valve mounted on pump. Nozzle spacing fully adjustable through top screw. Container height adjustment from 1 to 16 inches high. Nozzle stroke adjustments from 0 to 10 inches. Entry and exit bottle gating cylinders adjustable, sideways, up and down and inside and outside.Will work with plastic or glass containers.1hp motor, 220V/3PH/60Hz,10 Amps. 5 CFM @ 80 p.s.i.

Specifications
